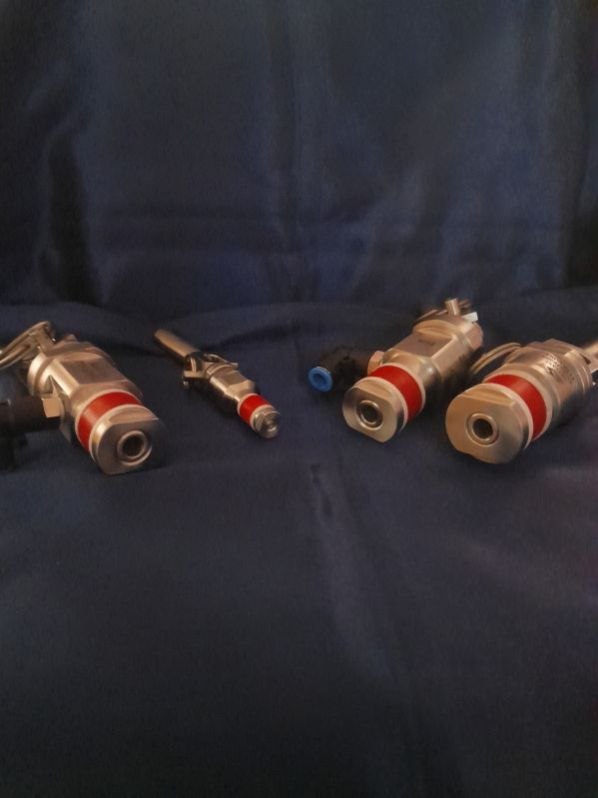

Testing Plugs
Sealant Enterprises offers customers the best lever-type testing plugs. Test Plugs provide a fast, safe and reliable solution for testing open-ended pipes. Capable of achieving test pressures up to 14000 PsiG (960 BarG), Test Plugs eliminate the need for welding on and cutting off end caps, saving time and money on every test.
The self-gripping design uses test pressure to supplement the plug’s pressure-holding capability - the greater the test pressure, the greater the grip. Test Plugs incorporate a ported shaft for easy filling, venting and draining of the test system. Test Plugs are reusable, further reducing the cost per test. Wear components (seals and gripper assemblies) are field-replaceable.
Basic Operation:
· Verify pipe size (Outer Diameter, Wall Thickness, and Inner Diameter), schedule, and material
· Place the plug into the inner diameter of the pipe
· Tighten the Compression Nut to the required installation torque
· Fill the pipe with the test medium
· Pressurize the pipe, and hold for the required time limit
· Depressurize and drain the test medium
· Loosen the Compression Nut and remove the Test Plug

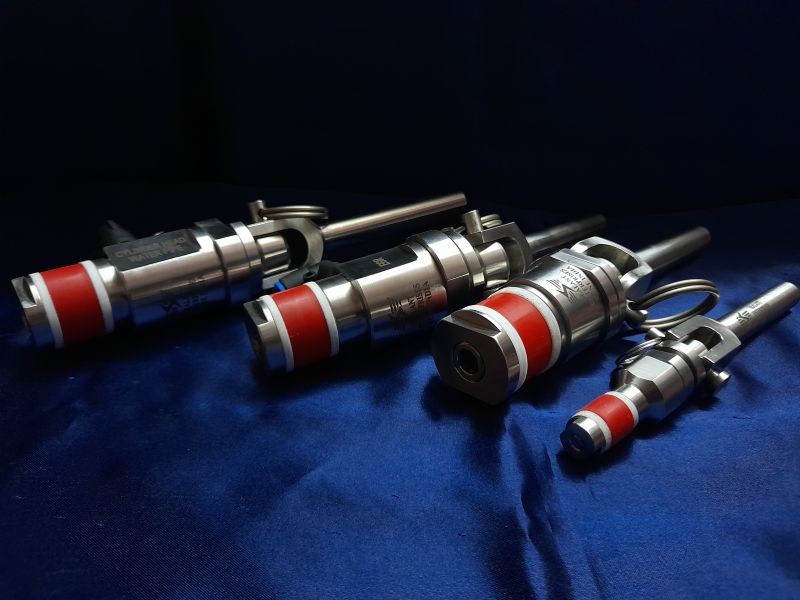

Lever Type Test Plug Features & Benefits
Safe: Pressure on the plug squeezes grippers tighter; the plug cannot be ejected under pressure when properly installed
High Pressure Performance: This has been used for pipe burst tests in a manufacturing environment. Tests at higher pressure with greater safety, typically to 80% of yield
Eliminates Weld Caps: No welding or cutting is required. Speeds fabrication testing, reducing test times up to 80%
Engineered Seal Design: Reduces seal wear for long-lasting performance
Optional High-Pressure Pipe Cap: Plugs can be used in solid or ported configurations
Choose to deal with us and order from our company. We take orders in bulk and deliver them to our customers always on time.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Finishing | Polished |
| Shape | Round |
| Color | Grey |
| Application | Industrial Use |
| Certification | ISI Certified |
| Country of Origin | India |
| Working Pressure | 6 Bar |
Preferred Buyer From
| Location | Worldwide |
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Driven Type | Electric |
| Country of Origin | India |
| Working Pressure | 6 Bar |
| Size | Standard |
| Surface | Polished |
Preferred Buyer From
| Location | Worldwide |
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Driven Type | Electric |
| Color | Grey |
| Country of Origin | India |
| Working Pressure | 350 Bar |
| Size | Standard |
Preferred Buyer From
| Location | Worldwide |
Sealant Enterprises has a wide range of products including Hydro Leak Testing plugs. The products of our company are made with the best raw materials that are sourced from the best dealers and suppliers.
Hydro Leak Testing is a pressure-based assessment method used to test the structural integrity of vessels that hold and/or transport fluid or gas. Hydro Leak Testing detects leaks in a variety of objects, including industrial piping systems, gas cylinders, plumbing, boilers, and storage tanks.
How does Hydro Leak Testing work?
While there are various methods for conducting Hydro Leak Testing, each method generally works by filling the system in question with either water or compressed air and then pressurizing the system up to 1.5 times the design pressure limit. The system is then monitored for visible and/or measurable leaks during a pre-specified amount of time.
When is Hydro Leak Testing required?
Hydrostatic Testing is performed on newly constructed pipelines or existing piping systems to monitor for leaks. It is also used to test the integrity of new welds. To perform this one needs to get quality Hydro Leak plugs.
Benefits of Hydro Leak Testing
Hydro Leak Testing can detect leaks before systems are operational, reducing the emissions of volatile organic compounds and eliminating reportable leaks. Furthermore, Hydrostatic Testing can assist with the identification of faulty equipment, preventing the potentially catastrophic impact of leaking hazardous materials.
Finally, Hydro Leak Testing plug can reduce downtime by facilitating timely leak detection and repair when conducted by experienced technicians.
Common Applications
Hydro Leak Testing is most often used on newly constructed pipelines during commissioning and start-up. It can also be used on turnarounds, however, to detect the presence of possible leaks or integrity issues.
Can Hydro Leak Testing Cause Damage?
When performed by experienced technicians or engineers with the correct pressure tools, Hydro Leak Testing is a safe and effective method for detecting and locating leaks and integrity issues and will not cause damage.
Precise care is required regarding design and operating pressure ratings to ensure safe implementation of Hydro Leak Testing. Furthermore, in cases where pneumatic hydro testing is required, additional safety procedures and requirements ensure the safety of the testing process.
Choose to deal with us and order our Hydro Leak testing plugs for your use.
MOQ : 1 Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Stainless Steel |
| Driven Type | Electric |
| Color | Grey |
| Country of Origin | India |
| Working Pressure | 350 Bar |
| Size | Standard |
Preferred Buyer From
| Location | Worldwide |
